Easily adjustable
Kombi-Flex R-1000
Semi-automated nailing machine for production of complete pallets in to steps.
Table R-1000 EXTAB
Semi-automated nailing machine for production of large size complete pallets.

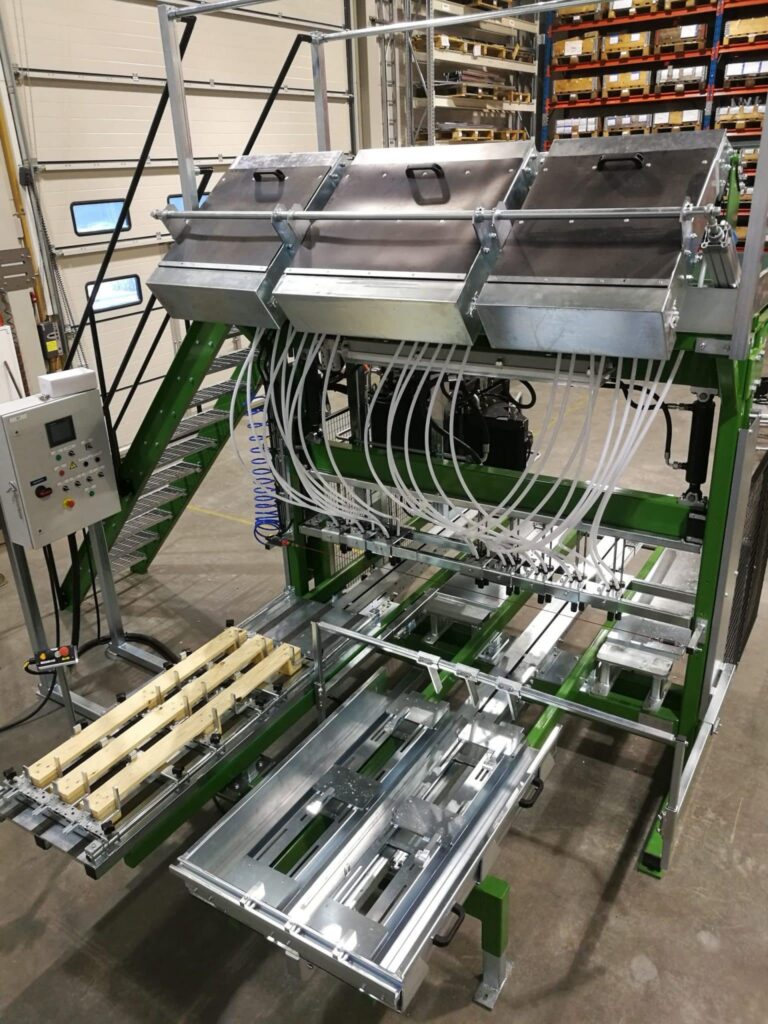

Kombi-Flex R-1000
Semi-automated nailing machine for production of complete pallets in to steps.
Blocks and leg boards are loaded manually into the left fixture, while the machine automatically nails them together. The finished legs are then moved by hand to the right fixture, where deck boards are manually placed on top and nailed automatically. Both fixtures operate simultaneously. The machine is started with the push of a button, and completed pallets are manually removed from the back.
Pallet size and design can be changed in just a few minutes on all Mychrome machines.
Mychrome also offers additional machinery that can be easily connected to existing machines, creating a longer production line with more automated stages. Even with these additions, pallet size and design remain fully adjustable.
| Machine specification | Standard performance |
|---|---|
| Operators | 1-2 |
| Length | 3,5m |
| Width | 2,5m excluding platform ladder |
| Height | 3,6m |
| Power | 14 kW, 3×400 V+N |
| Pneumatic system | 7 bar compressed dried air: 300 L/min |
| Machine capacity | 500 pallets/8h |
| Standard equipment | 1 channel for legs 1 channel for pallet assembly 1 pallet matrix interchangeable 1 leg matrix adjustable Operators terminal for production control Program for saving nail positioning |
| Nailing system | Hydraulic beam nailing, 3 nail boxes, 30 nailing hammerheads |
| Material: Blocks | Height | Width |
| Material | Solid wood or pressed blocks | |
| Dimension | 70-100mm | 75-150mm max 360mm/3 legs |
| Material:Leg boards | Min. | Max. |
| Length | 600mm | 1 600mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 28mm |
| Material:Stringer boards | Min. | Max. |
| Length | 600mm | 1 300mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 28mm |
| Material:Deck boards | Min. | Max. |
| Length | 600mm | 1 600mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 28mm |
| Pallet size | Min. | Max. |
| Length decks and legs | 600mm | 1 600mm |
| Width decks | 600mm | 1 300mm |

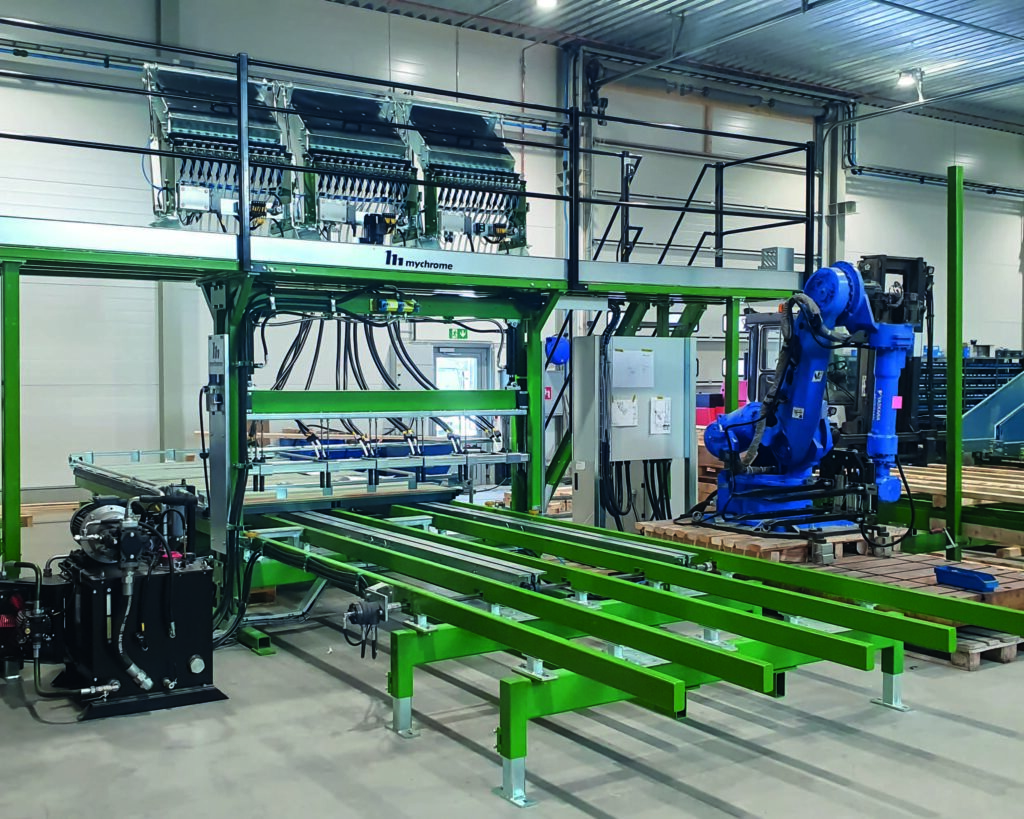

Table R-1000 EXTAB
Semi-automated nailing machine for production of large size complete pallets.
Stringer boards and deck boards are manually fed into the fixture. The machine nails pallets together automatically. The machine starts by a push of a button and the finished pallets are automatically pushed out on the back of the machine.
| Machine specification | Standard performance |
|---|---|
| Operators | 1-2 |
| Length | 6m |
| Width | 2,5m excluding platform ladder |
| Height | 3,6m |
| Power | 14 kW, 3×400 V+N |
| Pneumatic system | 7 bar compressed dried air: 300 L/min |
| Machine capacity | 300-500 pallets/8h, depending on |
| Standard equipment | 2 channels for pallet assembly 1 pallet adjustable matrix Operators terminal for production control Program for saving nail positioning |
| Nailing system | Hydraulic beam nailing, 2 nail boxes, 21 nailing hammerheads |
| Material: Blocks | Height | Width |
| Material | Solid wood or pressed blocks | |
| Dimension | 70-100mm | 75-150mm max 360mm/3 legs |
| Material:Stringers | Min. | Max. |
| Length | 600mm | 1 800mm |
| Width | 75mm | 150mm |
| Thickness | 50mm | 150mm |
| Material:Deck boards | Min. | Max. |
| Length | 600mm | 2 500mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 50mm |
| Pallet size | Min. | Max. |
| Length deck | 600mm | 2 500mm |
| Width deck | 600mm | 1 800mm |
