Stringer pallet machine REM-2000
Semi- or fully-automated nailing machine for production of stringer pallets.
Under board nailing machine UBM-2000
Fully-automated nailing machine for under boards on stringer pallets.

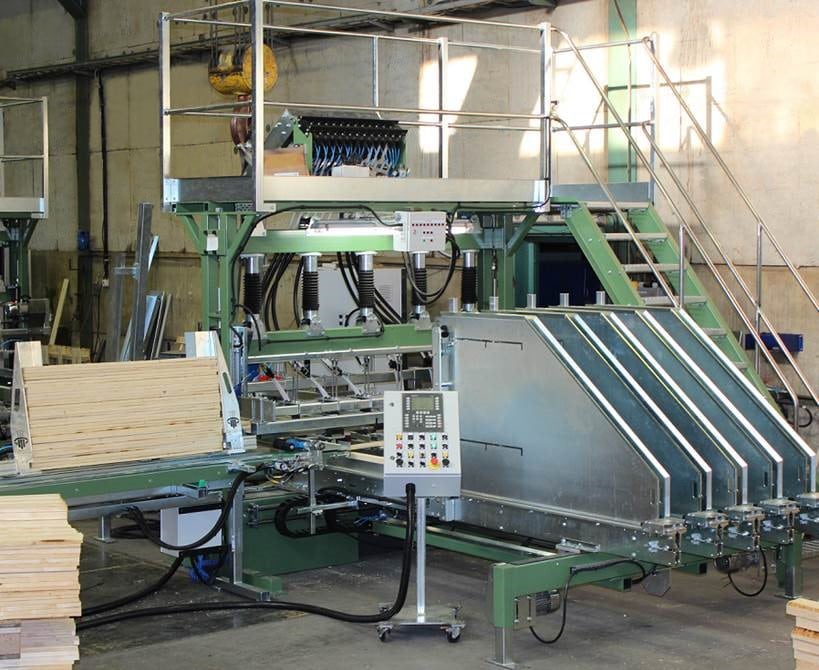

Stringer pallet machine REM-2000
Semi- or fully-automated nailing machine for production of stringer pallets.
Deck boards and stringers can be fed into the machine either manually or automatically. The stringers are fed from the rear of the machine, while the deck boards are supplied via a side infeed conveyor. Before nailing, the boards are automatically positioned with high accuracy. The machine is equipped with deck board magazines, a conveyor belt, and an integrated nailing system.
The REM-2000 allows the production of single-sided stringer pallets with 2–5 stringer boards. Adjustments to the stringer board channels take only a few minutes. Pallet size and design settings can be quickly modified on all Mychrome machines. By adding the UBM-2000, the REM-2000 can be upgraded to a double-sided stringer pallet solution.
Mychrome also offers a range of additional machines that can be easily integrated with existing equipment to create a more automated production line. Even with added machinery, full flexibility in pallet size and design is maintained.
| Machine specification | Standard performance |
|---|---|
| Operators | 1 |
| Length | 4m |
| Width | 2,5m excluding platform ladder |
| Height | 3,6m |
| Power | Electric: 14 kW, 3×400 V+N, Hydraulic: 22 kW, 3×400 V+N |
| Pneumatic system | 7 bar compressed dried air: 400 L/min |
| Machine capacity | 24 deck boards/min |
| Standard equipment | 2 cassettes for deck boards 5 channels for stringer feeding 5 cassettes for stringers |
| Nailing system | Hydraulic or electric nailing system, 1 nail box (12 nails), Individual nail picking, nail indication system, 12 nailing hammerheads |
| Material:Top board | Min. | Max. |
| Length | 600mm | 1 600mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 28mm |
| Material:Stringer | Min. | Max. |
| Length | 600mm | 1 400mm |
| Width | 30mm | 100mm |
| Height | 60mm | 100mm |
| Wing | -20mm | +80mm |
| Stringer pallet size | Min. | Max. |
| Length | 600mm | 1 600mm |
| Width | 600mm | 1 400mm |

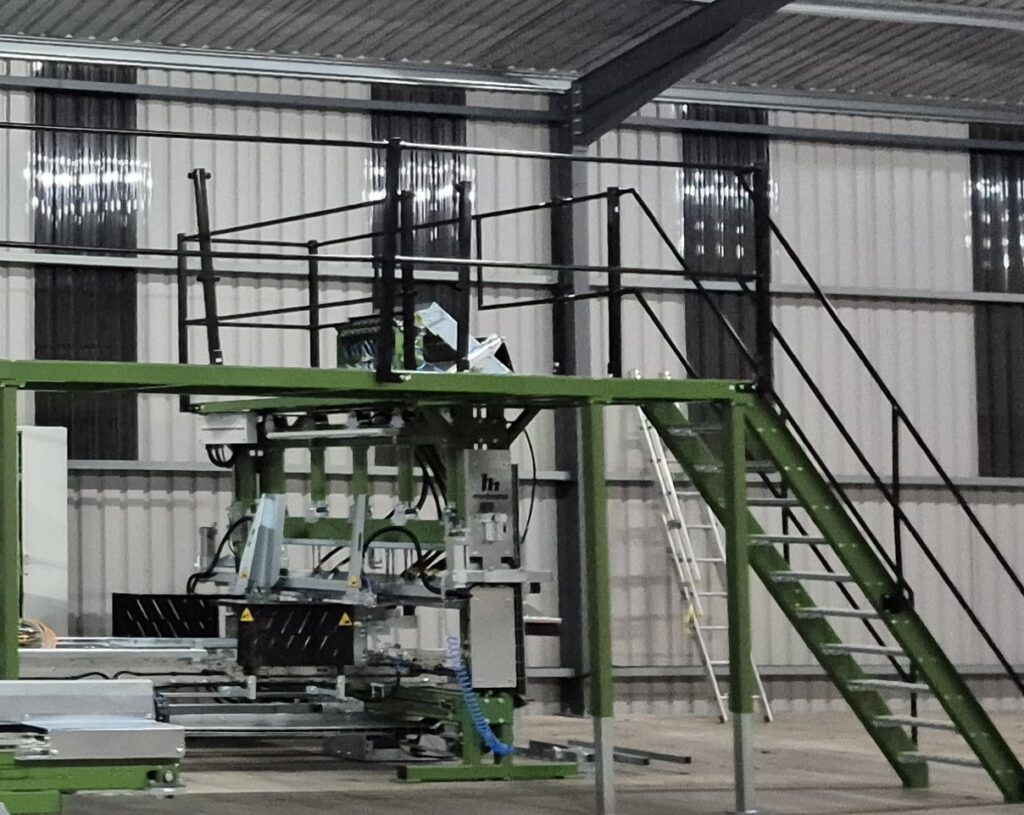

Under board nailing machine UBM-2000
Fully-automated nailing machine for under boards on stringer pallets.
Two adjustable channels transport the stringer boards into the machine and position them accurately. The machine then nails the stringer boards to the underside of the stringer pallets.
The UBM-2000 is designed to operate in line with the REM-2000 deck nailing machine. The decks are turned upside down by an additional unit, the FLP turner, and are automatically fed into the UBM-2000, where underboards are attached to the stringer boards.
| Machine specification | Standard performance |
|---|---|
| Operators | 1 |
| Length | 4m |
| Width | 2,5m excluding platform ladder |
| Height | 3,6m |
| Power | Electric: 12 kW, 3×400 V+N, Hydraulic: 20 kW, 3×400 V+N |
| Pneumatic system | 7 bar compressed dried air: 300 L/min |
| Machine capacity | 24 boards/min |
| Standard equipment | 2 channels with motorized adjustment 2 nailing supports for stringer pallets Program for saving nail positioning Operators terminal for production control 1 nailing support for stringer pallets fixed in middle |
| Nailing system | Hydraulic or electric nailing, 1 nail box (12 nails), 12 nailing hammerhead, 12 indication system, 12 individual nail pickers |
| Pallet size | Min. | Max. |
| Length deck and legs | 600mm | 1 600mm |
| Width deck | 600mm | 1 400mm |
| Material:Board | Min. | Max. |
| Length | 600mm | 1600mm |
| Width | 75mm | 150mm |
| Thickness | 16mm | 28mm |
| Wing on top board | -20mm | +80mm |
